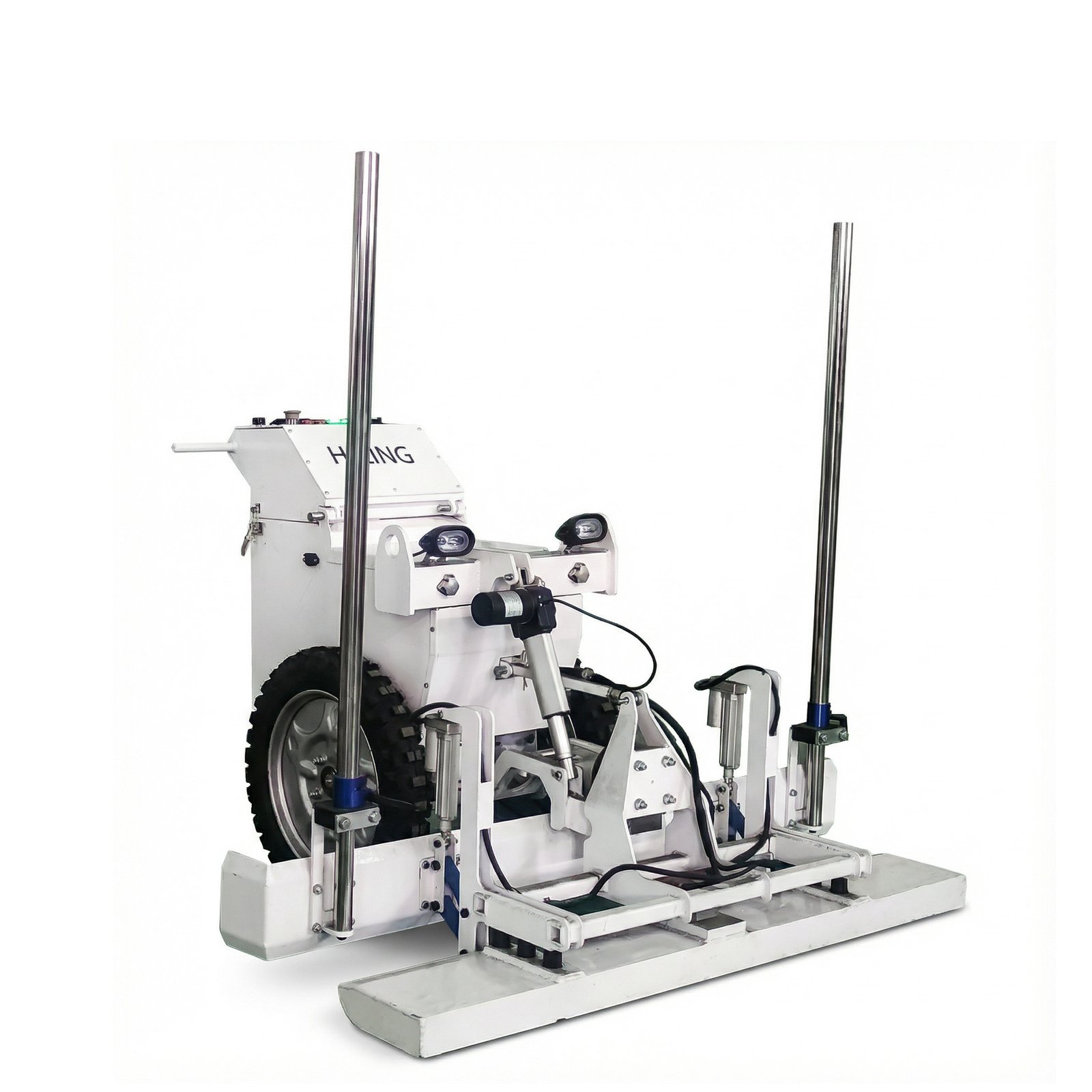

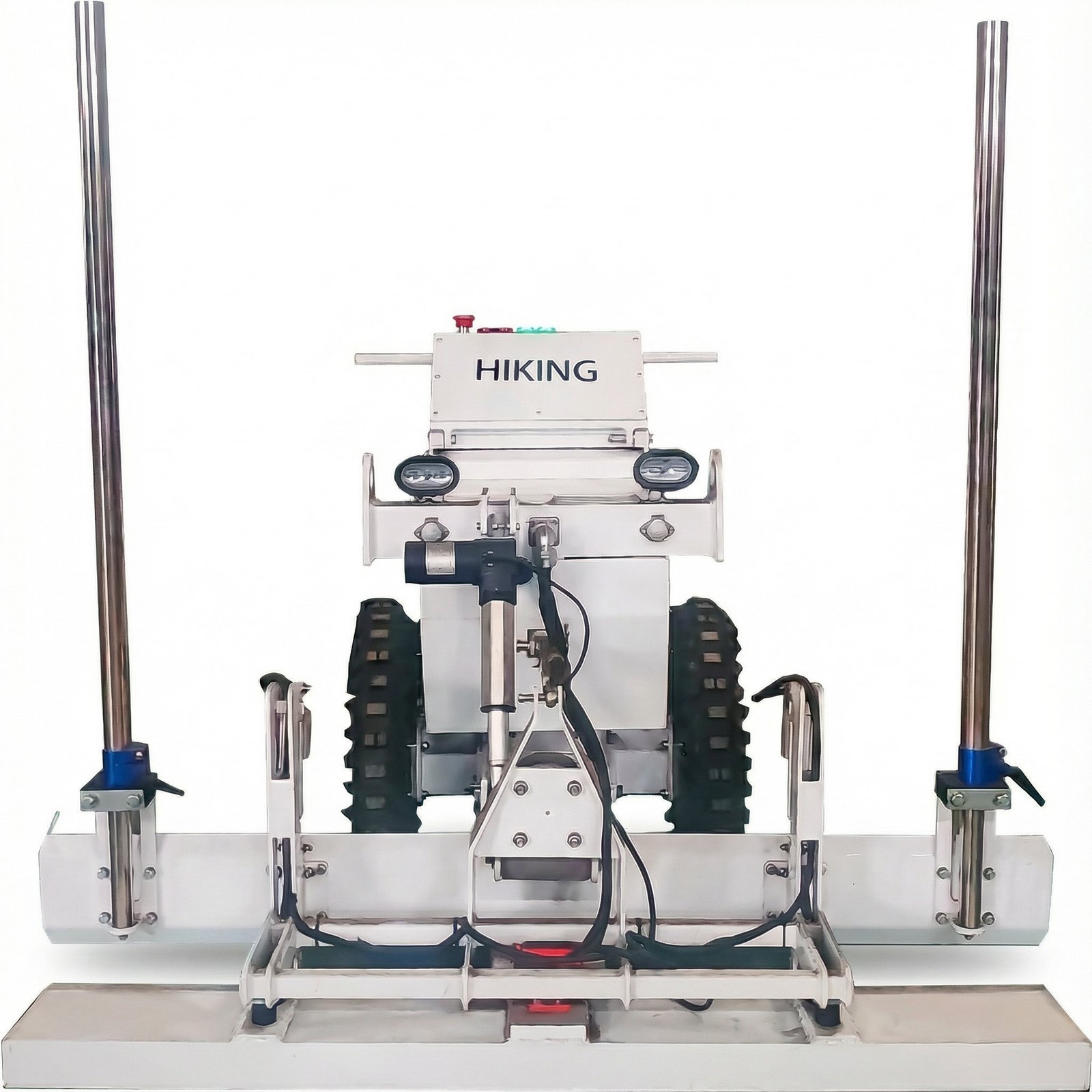

ELVES 130 Battery Super Laser Screed

Original price was: $28,000.00.Current price is: $23,500.00.

ELVES 130 super screed is Hiking machinery new product for 2023. The machine usean Ultra-shot body desin, the body length is only 130cm. More flexible and smaller turning radius, can be used in various pouring projects include small and large area. the fuselage is made of aero-aluminum alloy and weight only 100kg. It can be used in any projects with steel mesh. Powered by lead-acid battery. The maintenance cost is much less, continuous construction can reach more than 5 hours. Athe same time optional lithium battery, continuous construction can reach more than 10 hours. The standard leveling width is 1.3 meters, and customize any width within 1.5 meters leveling head.

GET AN INQUIRY
The transportation, use, and maintenance of this product require a certain level of expertise, so please consult us before purchasing. Please click the “GAT AN INQUIRY” button above and leave your contact information. Our sales manager will contact you as soon as possible.
Specifications
Item Data
Laser system accuracy ≤1.5mm
Operating Voltage 48V
Battery Type Lead-acid batteries / Ternarylithium battery
Continuous working time ≥5h / ≥10h
Maximum travel speed 2.9 km/h
Vibration motor speed 1000-4700r/m Adjustable
Leveling width Standard: 1.3m / Optional: 1-1.5m
Working Size 130x135x130CM
Transport Size 110x67x93CM
Weight 100kg
Features

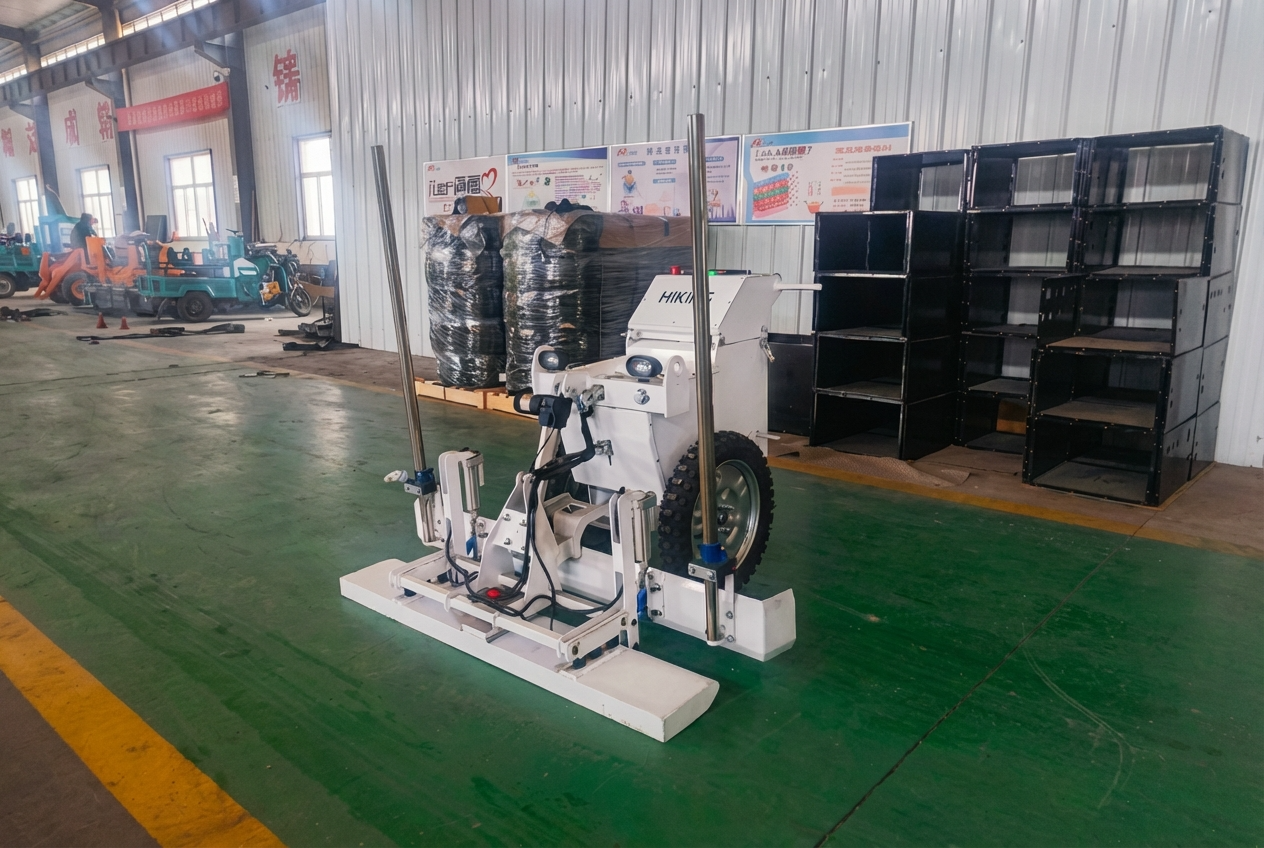

Compact and lightweight design with dimensions of 130×130×130mm and weighing only 130kg, ideal for indoor concrete floor leveling applications.
Compact and lightweight design with dimensions of 130×130×130mm and weighing only 130kg, ideal for indoor concrete floor leveling applications.

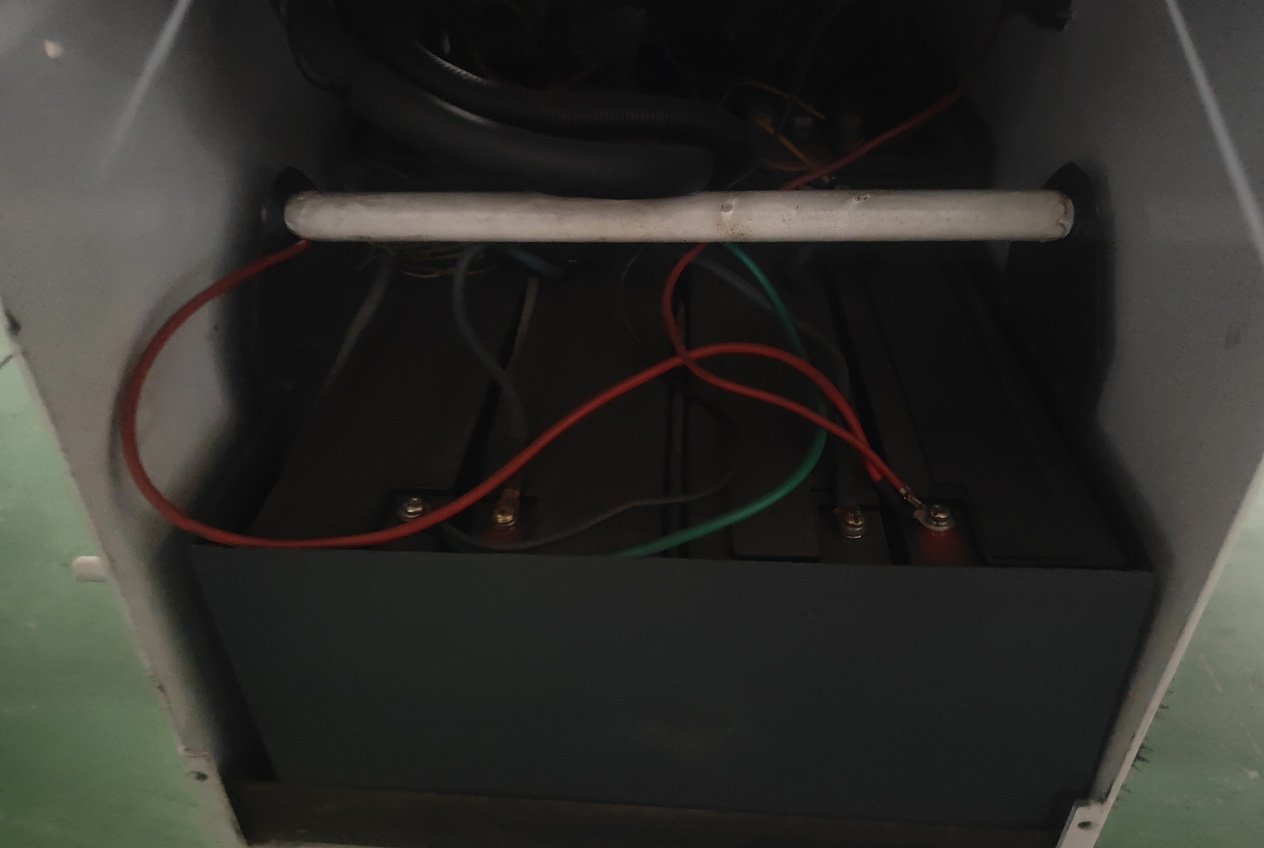

Equipped with a 48V lead-acid battery for simple maintenance. Lithium battery option available, offering up to 10 hours of continuous runtime.
Equipped with a 48V lead-acid battery for simple maintenance. Lithium battery option available, offering up to 10 hours of continuous runtime.

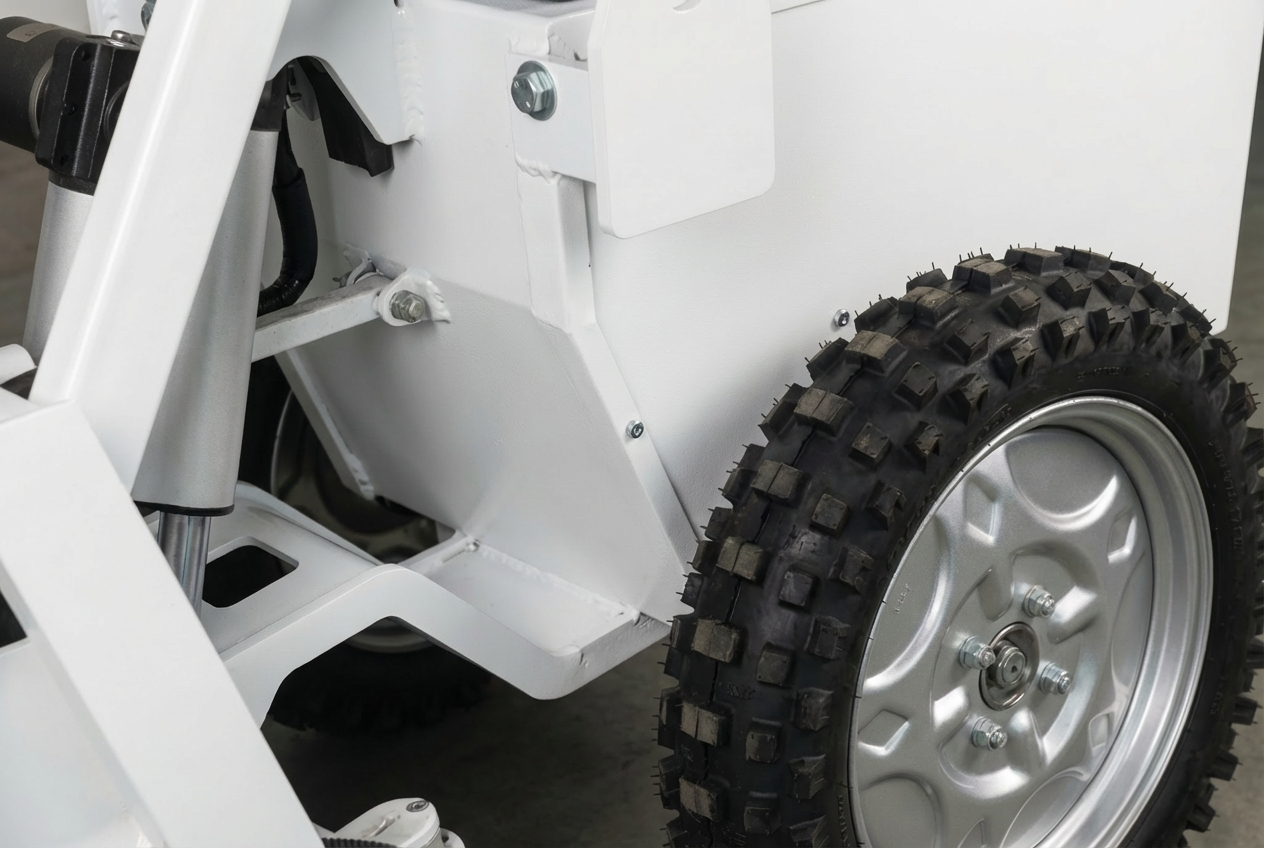

Equipped with off-road puncture-resistant wheels, suitable for concrete leveling projects on surfaces with steel reinforcement mesh.
Equipped with off-road puncture-resistant wheels, suitable for concrete leveling projects on surfaces with steel reinforcement mesh.

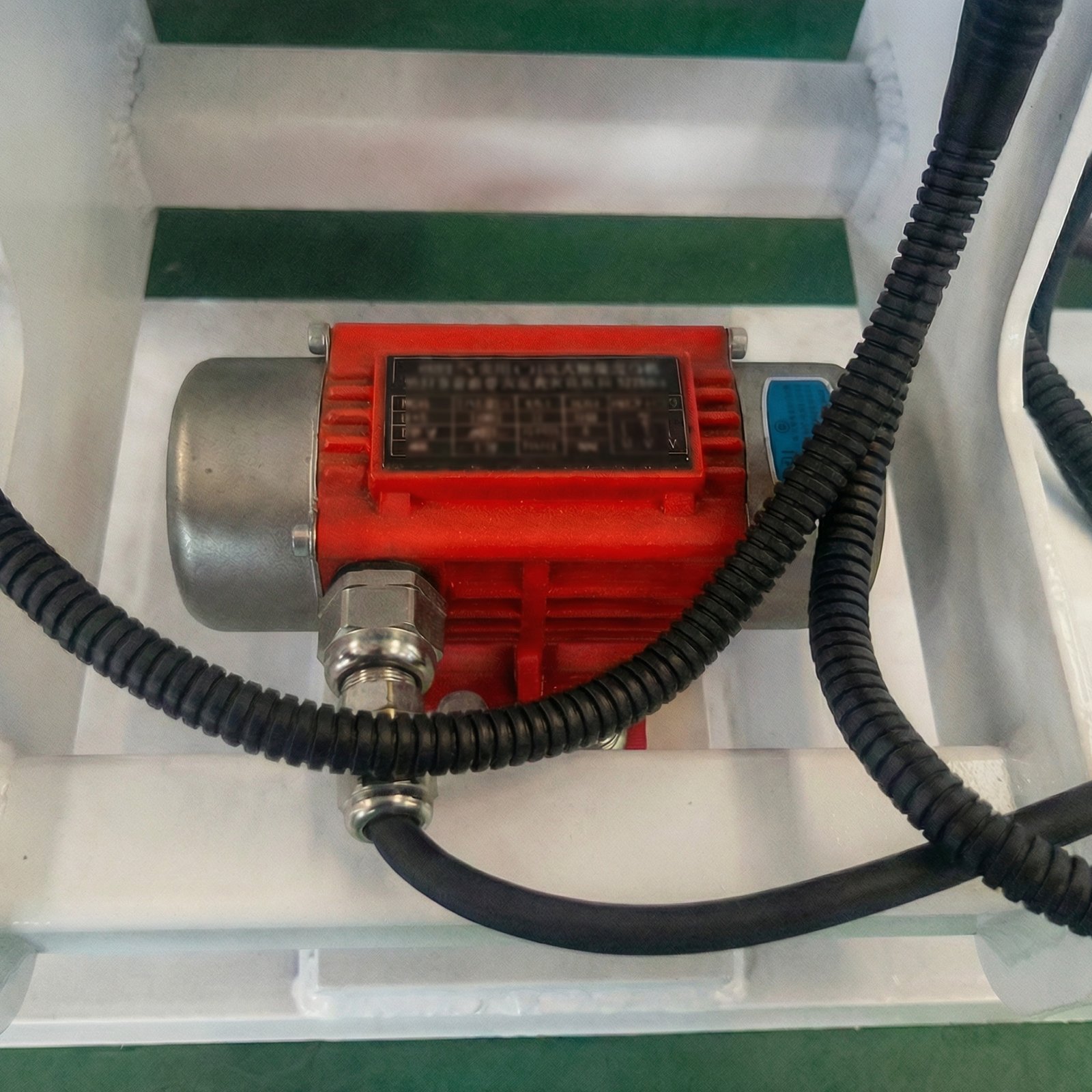

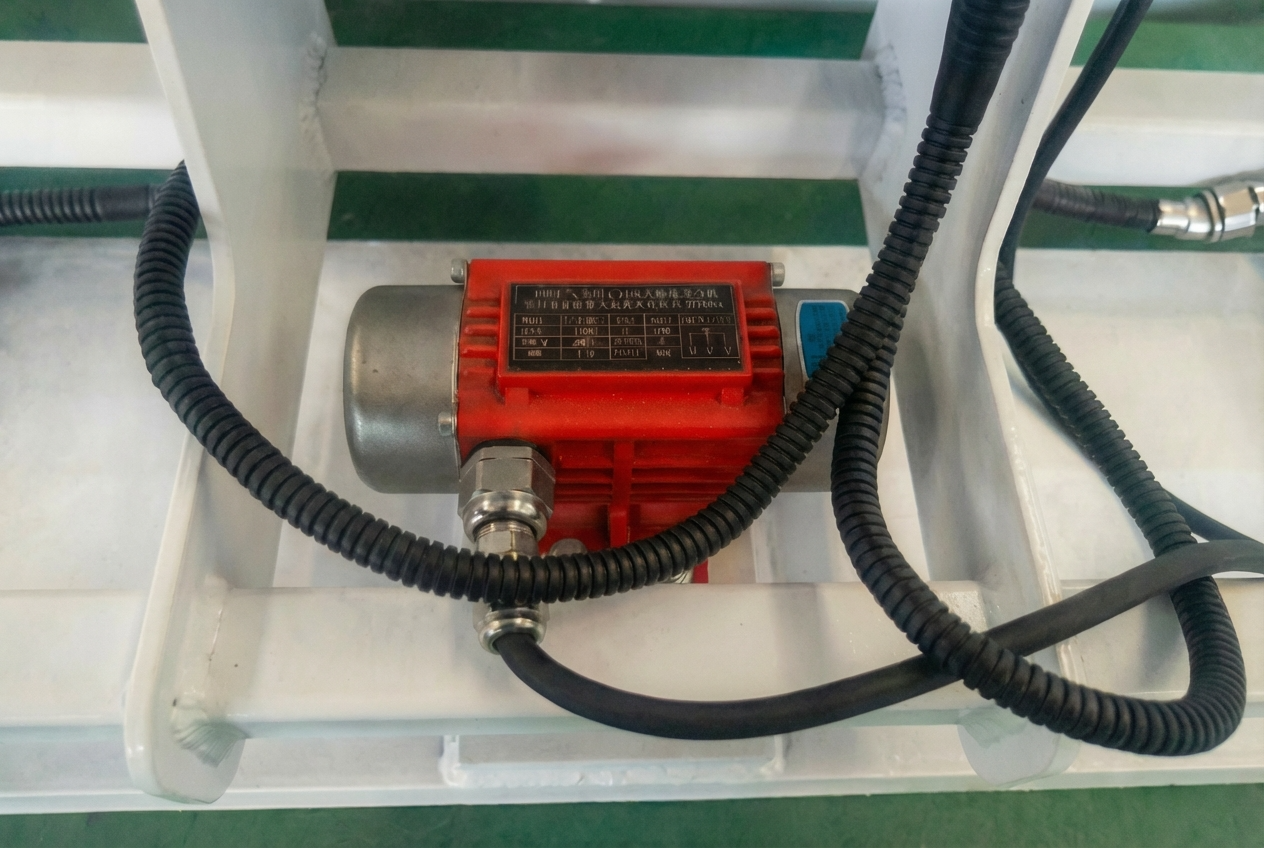

Powered by a 4700Hz brushless vibration motor that delivers powerful vibration force, with adjustable intensity settings to suit various needs.
Powered by a 4700Hz brushless vibration motor that delivers powerful vibration force, with adjustable intensity settings to suit various needs.

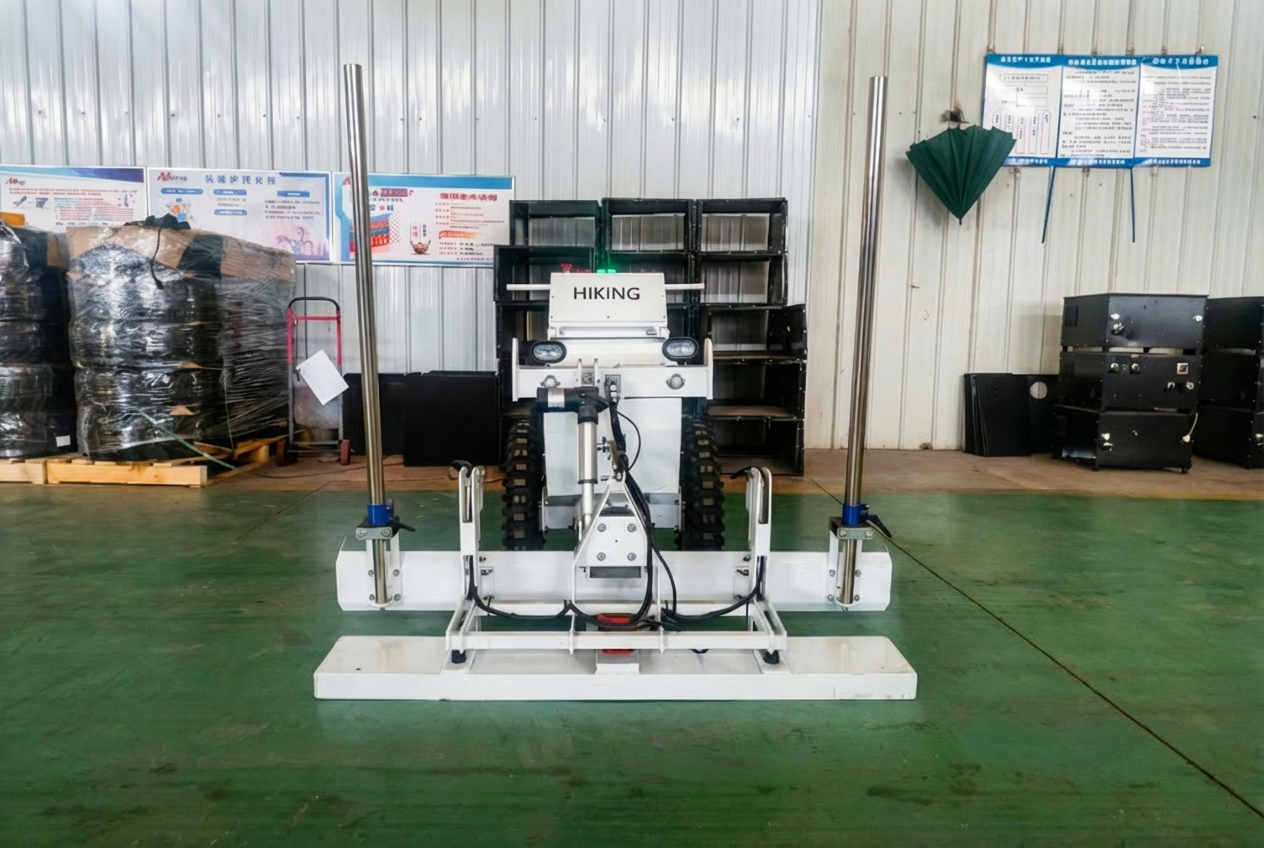

Standard 130mm-wide leveling head included, with customizable width options available to meet specific requirements.
Standard 130mm-wide leveling head included, with customizable width options available to meet specific requirements.

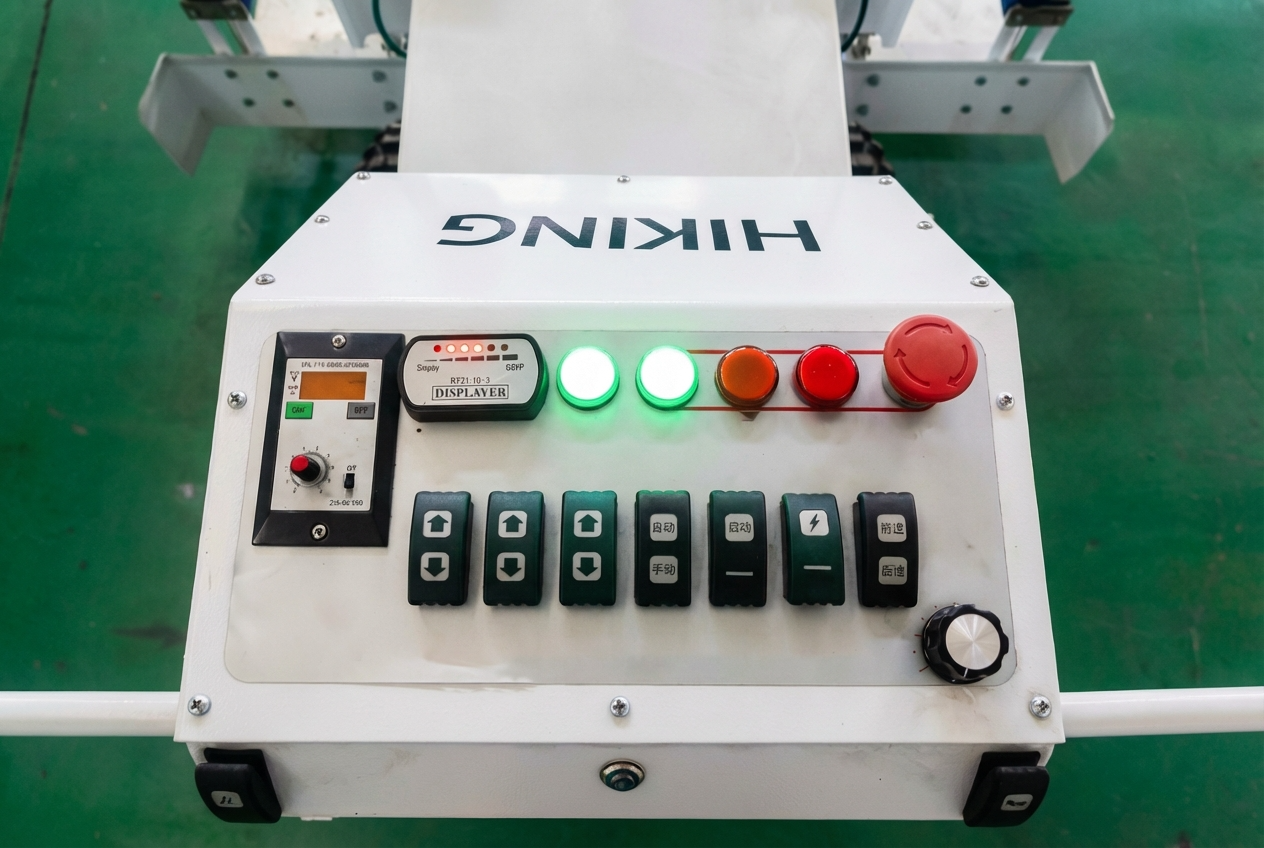

User-friendly control panel featuring electronic steering and one-touch auto-leveling function, enabling quick and easy operation for new users.
User-friendly control panel featuring electronic steering and one-touch auto-leveling function, enabling quick and easy operation for new users.

Line

Benefits
Comparison between HIKING laser screed and the traditional crafts-2
Comparison between HIKING laser screed and the traditional crafts
Comparison between HIKING laser screed and the traditional crafts
Comparison between HIKING laser screed and the traditional crafts
Comparison Factor Traditional Method Laser Screed Your Advantage
Labor Required 20 workers 4-8 workers (or 1 operator) ↓ 70% labor costs
Daily Coverage 800-1500㎡ 2000-3500㎡ ↑ 150-300% productivity
Precision ±5-10mm (template-dependent) ±1mm (laser-controlled) 5-10X better accuracy
Floor Integrity Segmented (construction joints) Continuous large-area pouring Superior flatness
Setup Time 1 day formwork + 1 day pouring Immediate operation Faster project completion
Error Rate High (template shock, cumulative) Minimal (point-to-point laser) Consistent quality
Q&A

1. What is the quality of the machine?

HIKING places great emphasis on product quality, manufacturing and testing our machines according to a rigorous quality control system. The ELVES130 comes with a one-year free warranty and lifetime cost guarantee (please refer to our warranty policy for specific details), ensuring you have complete peace of mind when using the machine.

2. What is the lead time?

The ELVES130 is generally in stock. However, before leaving the factory, we conduct a secondary rigorous testing process and custom wooden crate packaging. The entire preparation cycle typically takes 7-10 working days.

3. How do I operate this machine? What if I don’t know how to use it?

In addition to written instructions, we have created detailed operation guide videos for the ELVES130. By following the video content, you can easily learn how to operate the machine. If you have any specific questions during the process, you can always consult our technical staff for assistance.

4. How is the machine shipped? Can it be purchased in different countries?

We can ship to most countries worldwide. The ELVES130 laser screed is a medium-sized piece of equipment and is typically transported by sea freight. If you would like to know specific delivery timeframes and shipping details, please leave a message in the form below to consult with our sales manager.
